CAT6 & CAT6A Shielded RJ45 Modular Plug for Solid or Stranded Cable, 100 Pack
Item No:
Shipping:
* Add to Cart to check shipping cost!!
* Buy >$2000 get Free Shipping!
Discounts:
(Use your code in the checkout)
* Get 2% discount, code: 2%OFF
* Buy >$500 save 3%, code: 3%OFF
* Buy >$1000 save 4%, code: 4%OFF
Vertical Cable CAT6 & CAT6A Shielded RJ45 Modular Plug for Solid or Stranded Cable : RJ45 Modular Plugs

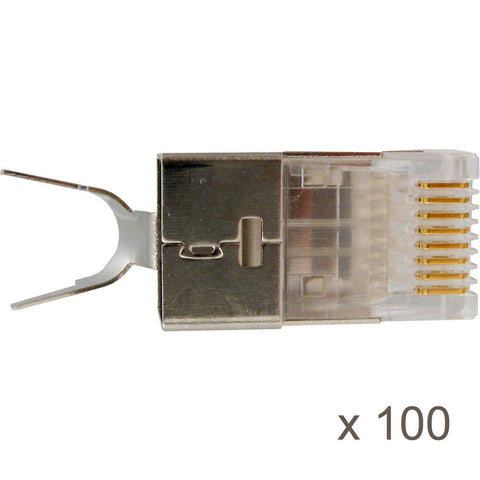

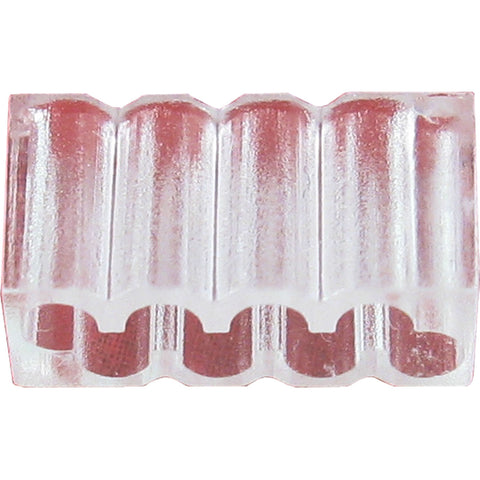

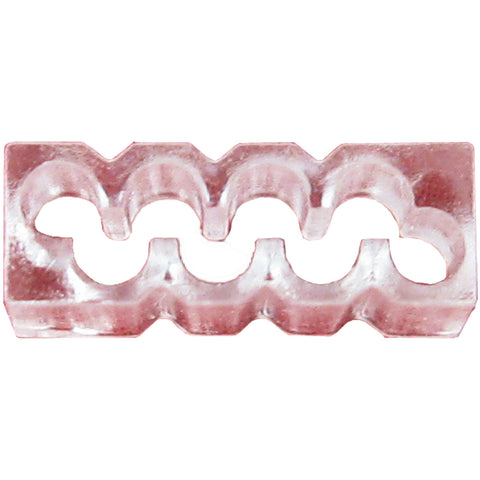

This is a pack of 100 RJ45 plugs. This RJ45 plug is designed for Cat6 and Cat6A shielded cables with solid or stranded conductors. It has 8 positions and 8 conductors (8P8C). Each position accepts wires up to 1.2 mm outer dimension. Plug contacts are designed with 3 prongs and are gold plated to 50 micro-inches. Maximum cable thickness allowed for this plug is 8 mm. This plug includes a load bar. (TO CRIMP THIS PLUG YOU NEED A CRIMPER TOOL WITH REMOVABLE CENTER TEETH SUCH AS 078-1017)
- RJ45 Plug for Cat6 and Cat6A Shielded Cables with Load Bar - Pack of 100
- 8 Positions 8 Conductors (8P8C)
- Accepts Solid or Stranded Wires with 1.2 mm Outer Dimension
- Maximum Cable Thickness Allowed 8 mm
- 50 Micro-Inches Gold Plated 3 Prong Contacts
